Covered Car Parking Tensile Structure Manufacturer
A fully covered, weathertight tensile roof over parking — a sealed PVC or PVDF membrane on a galvanised steel frame, with valley gutters and column downpipes, so the bays stay dry in any weather. Designed, fabricated and installed by Ekra Decor since 1998.
- Weathertight — no open front edge
- Valley gutters, concealed column downpipes
- Column-free bays
- Engineered to IS 875, IS 800 & IS 456
Engineering Trusted by India’s Leading Names
28+ years delivering tensile structures for corporate campuses, industrial groups, and institutional developments — built with fabric technology from the world’s leading membrane manufacturers.
TATA Motors
L&T
Reliance
Adani
Mahindra
Godrej
DLF
ITC Ltd
Maruti Suzuki
GMR Group
JSW Steel
Prestige Group
Sobha
Siemens
Tata Chemicals
Tata Tele Business Services
Power Grid Corporation
Emaar MGF
National Law University Delhi
UPES Dehradun
Vasant Valley School
Aditya Birla Group
Amity University
Vikram Solar
Tractors India
Mazda Colours
Millennium Structurals
Sehwag International School
BSBK Pvt. Ltd.
17 Miles Hotel
Rich Harvest School
The Imperial New Delhi
Moore Constructions
Mehra Construction
Ramprastha
Minda NexGenTech (UNO Minda)
Yashmay Public School
Gyan Mandir Foundation
Omega Developers
SPEC
Serge Ferrari
Mehler
Heytex
Versaid
Pait
“Covered” means a weathertight roof, not just shade
An open shade blocks the sun and most of the rain. A covered car parking structure is designed and detailed as an actual roof — welded seams, proper falls, gutters and downpipes — so the cars underneath stay genuinely dry through a monsoon.
The steelwork
Hot-dip galvanised, typically 86 microns or more, because the frame lives in an open, wet environment for decades. Cut ends and site welds are re-coated so there is no bare steel to start rusting.
The membrane
PVC-coated polyester with high-frequency welded seams — welded, not stitched, so the joints do not leak or unpick. A PVDF topcoat adds a self-cleaning surface and a longer life.
Loads
Designed for the site’s wind zone under IS 875 Part 3, plus hail, and — in the north — snow building up along the valleys.
Options
- Side infill panels or roll-down blinds on the prevailing-weather side.
- End gables to close off a run.
- Integrated gutters and rainwater downpipes to a site drain.
It costs more than an open shade, and it is worth it where vehicles sit for days — society and hospital parking, showroom stock, staff car parks. For a lighter open canopy see car parking tensile shades; for premium sites see designer car parking. Ask for a specification.
Covered-parking layouts
A covered car park is defined by its drainage: every part of the roof falls to a gutter, and the gutters are piped away, so nothing drips onto the vehicles or the aisle.
Back-to-back “butterfly”
Two rows of bays meet at a raised central ridge and drain to a valley gutter between them. The standard covered layout for an open lot.
Ridge-and-valley grid
Repeated ridges and valleys cover a large lot in both directions; the valleys are the drainage lines, piped down through the columns.
Mono-pitch enclosed bay
A single slope draining to a boxed gutter along the low edge — used against a boundary or a building.

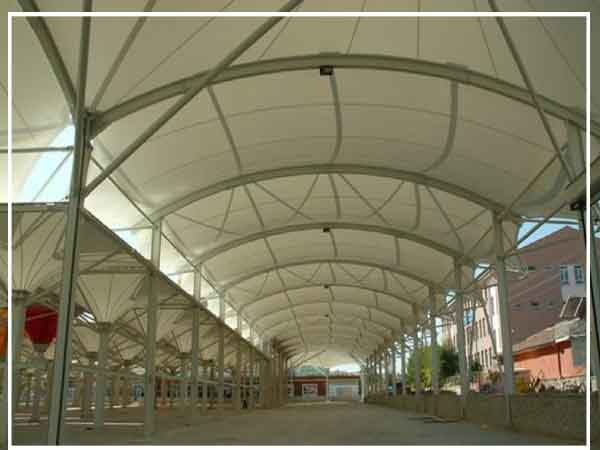

Barrel vault
A continuous arched roof over a long parking row; the curve sheds water to gutters at both eaves.
For an open cantilever shade — lighter, cheaper, open at the front — see car parking tensile shades. For larger vehicles, vehicle parking structures.
What is specified on a covered car park
There is no single fixed spec — structure, membrane and drainage are recommended after the site, layout and local weather are reviewed.
| Element | Options |
|---|---|
| Structure | Butterfly (back-to-back), ridge-and-valley grid, mono-pitch, or barrel vault |
| Membrane | PVC-coated polyester for most work; PVDF for a longer-lasting finish; PTFE-glass for a permanent, non-combustible roof |
| Frame | Structural or mild steel, hot-dip galvanised; painted or stainless-detailed for coastal and industrial sites |
| Drainage | Valley and eaves gutters sized to the local rainfall intensity, with overflow routes; downpipes concealed inside the columns |
| Clear height | Set from the vehicles; a taller roof catches more wind and needs a heavier frame |
| Coverage | A few bays up to a multi-hundred-bay lot |
| Foundations | Isolated footings to IS 456, sized mainly for wind uplift |
| Lighting | Fittings on the steel; wiring concealed in the columns |
| Scope | Survey, 3D design, fabrication, installation, tensioning and maintenance support — one in-house team |
General membrane figures — life, translucency, fire class — are manufacturer values for the material type, set out on the membrane materials page. The engineered values for a given roof come out of the structural design for the site and loads.
Membrane options
Covered parking is almost always a PVC-based membrane. PTFE is chosen where the roof has to be permanent or meet a high fire class.
PVC-coated polyester
The most economical choice and the widest colour range; blocks the rain, hail and almost all UV. PVC fabric →
PVDF-lacquered PVC
The same base with a tougher top-coat that stays cleaner under dust and pollution. PVDF fabric →
PTFE-coated glass
Non-combustible and near self-cleaning, with the longest service life. PTFE fabric →
A full comparison of the fabrics — translucency, fire class, typical life — is on the membrane materials page.
How it is engineered and built
The governing load
A tensile roof weighs almost nothing, so wind uplift is the design case, not gravity. The membrane is form-found into double curvature so it stays taut, and the frame and footings are sized for the site’s design wind pressure under IS 875 Part 3.
Drainage is engineered first
On a covered park the falls, valley lines, gutter sizes and outlet positions are set during form-finding — they cannot be added afterward.
Steel & foundations to code
The frame is designed to IS 800 and the footings to IS 456, checked for uplift and overturning. Galvanising to IS 4759 / IS 2629 for corrosion protection.
Built off-site, raised fast
Steel is cut, welded and galvanised in the workshop and the membrane is cut and welded into panels, while the footings are cast on site. On-site work is then quick and low-disruption.
One accountable team
Survey, 3D design, fabrication, installation and tensioning are all Ekra Decor’s own team, with a handover pack of drawings, load report, stability certificate and material certificates.
What drives the cost
Cost is not a fixed rate per square foot — two structures of the same size can differ widely. The main factors:
Send your parking layout for a design direction and an itemised quote. More on what moves the number is in the tensile structure cost guide.
Looking after the structure
- Cleaning — a periodic wash; PVDF surfaces largely self-clean in rain, plain PVC benefits from an occasional wipe-down of dust and tree debris.
- Membrane check — look over the fabric and seams for abrasion or lifting, especially at the edge cables and the corners.
- Cable tension — a first re-tension after the initial season, then a periodic check.
- Drainage — clear the edge gutters, valley gutters and column downpipes of leaves before the monsoon.
- Steel & bolts — inspect the galvanising and the connections, particularly at ground level.
Car-park & forecourt canopies we’ve built
Each project is documented with site photographs and recorded scope on its own page.
Industrial · Cantilever canopyManesar Car ParkingManesar, Haryana
Industrial · Two-wheeler canopyMinda Car ParkingMinda Group facility
Commercial · Forecourt canopyJewar Petrol PumpJewar, Uttar Pradesh
Industrial · Working-area canopyIndian Oil CorporationGreater Noida
Commercial · Working-area canopyTata TeleservicesHardware Park, Hyderabad
Covered car parking FAQ
The questions people ask before commissioning a covered car park.
A weathertight tensile roof over parking — a sealed PVC or PVDF membrane on a galvanised steel frame, with gutters and downpipes, so vehicles stay dry in any weather. Unlike an open cantilever shade, it has no open front edge.
A car-park shade is an open cantilever that sheds rain to its front edge — lighter and cheaper. A covered car park drains every part of the roof to gutters that are piped away, so nothing runs off onto the vehicles.
The roof falls to valley gutters between rows and eaves gutters at the edges, sized to the local rainfall intensity, with overflow routes. The gutters are piped down concealed inside the columns.
PVC-coated polyester for most projects, PVDF-lacquered for a cleaner finish that lasts longer, and PTFE-coated glass where a permanent, non-combustible roof is required.
Yes. Steel and membrane are fabricated off-site, so on-site work is casting footings and erecting the frame. The lot is worked in sections and handed back as each is finished.
Isolated concrete footings, designed to IS 456 and sized mainly for wind uplift because the roof weighs so little.
There is no fixed rate per bay or per square foot. Cost depends on the number of bays, the layout, the span, the membrane grade, the wind zone, the soil and site access. Send your layout for an itemised quote.
The galvanised steel frame lasts decades; the membrane is the wearing part — manufacturers typically quote 15–20 years for PVC, longer for PVDF. Maintenance is periodic cleaning, a membrane and cable check, and clearing the gutters before the monsoon.
