Tensile Structure in Lucknow
Tensile roofs and canopies for Lucknow — the state capital's commercial districts (Hazratganj, Gomti Nagar), the IT city, the institutional and university sector, government and civic projects, and the industrial areas of Chinhat, Amausi and Sarojini Nagar. Engineered for the upper-Gangetic climate. Two documented Ekra Decor projects: a 1,858 m² atrium courtyard roof, and a 686 m² commercial structure.
- Two documented Lucknow projects
- Large clear-span atrium roof capability
- Upper-Gangetic climate engineering
- In-house design, fabrication & installation
Engineering Trusted by India’s Leading Names
28+ years delivering tensile structures for corporate campuses, industrial groups, and institutional developments — built with fabric technology from the world’s leading membrane manufacturers.
TATA Motors
L&T
Reliance
Adani
Mahindra
Godrej
DLF
ITC Ltd
Maruti Suzuki
GMR Group
JSW Steel
Prestige Group
Sobha
Siemens
Tata Chemicals
Tata Tele Business Services
Power Grid Corporation
Emaar MGF
National Law University Delhi
UPES Dehradun
Vasant Valley School
Aditya Birla Group
Amity University
Vikram Solar
Tractors India
Mazda Colours
Millennium Structurals
Sehwag International School
BSBK Pvt. Ltd.
17 Miles Hotel
Rich Harvest School
The Imperial New Delhi
Moore Constructions
Mehra Construction
Ramprastha
Minda NexGenTech (UNO Minda)
Yashmay Public School
Gyan Mandir Foundation
Omega Developers
SPEC
Serge Ferrari
Mehler
Heytex
Versaid
Pait
Why a tensile structure in Lucknow
Lucknow's tensile-structure demand is led by its commercial and civic sector: courtyards and atria between the multi-storey buildings of Gomti Nagar and Hazratganj, government and institutional projects, the university and medical campuses, the IT city, and the retail and hospitality industry of a large, prosperous state capital. The industrial areas of Chinhat, Amausi and Sarojini Nagar add covered-yard and warehouse demand.
Ekra Decor has two documented Lucknow projects: a 1,858 m² (20,000 sq ft) atrium-style tensile roof spanning a courtyard between multi-storey buildings, completed in about two months; and a 686 m² (7,380 sq ft) commercial structure on a galvanised steel frame, completed in about six weeks.
Lucknow is served from the Delhi NCR base via the Agra–Kanpur corridor. Steel and membrane are fabricated at the workshop and shipped; the same in-house team installs. For the full technical background, see the tensile structure guide.
How the local climate shapes the design
Lucknow shares the upper-Gangetic climate — extreme summers with the loo wind, monsoon bursts, dust and winter fog. This is general climate information for the area; the wind, rain and snow values used in a structural design come from the site survey and the applicable codes, not from a page like this.
Extreme summer heat & the loo
April to June reach the mid-40s °C with the hot, dust-laden loo wind. A solar-reflecting membrane and a ventilated form are what make an outdoor space usable through the summer.
Monsoon in heavy bursts
The July–September monsoon (~850–1,000 mm) arrives in short, intense spells. Steep falls, oversized gutters and a designed overflow route keep a cloudburst off the membrane.
Dust storms & winter smog
Pre-monsoon dust storms and the winter air pollution of the Gangetic plain soil a plain lacquer over time. A PVDF-finished membrane resists dirt pick-up and largely self-cleans in rain.
Dense winter fog, humid air
December and January bring dense fog; the air is more humid than the western plains for much of the year. Enclosed forms are detailed with vents so moist air escapes.
Gusty pre-monsoon winds
Uplift governs and is taken for the site under IS 875 Part 3, including any acceleration around nearby buildings.
Firm alluvial ground
The alluvium is generally good to found on; isolated footings to IS 456, sized against uplift and overturning rather than gravity.
Tensile structures that make sense in Lucknow
Weighted toward the commercial, civic and institutional demand of the capital.
Atrium & courtyard roofs
Large clear-span membrane roofs over the courts between multi-storey buildings — daylit, column-free — as built for the 1,858 m² Lucknow project. Tensile roofing structures →
Commercial & retail cover
Entrance canopies, forecourt covers and food-court roofs for the commercial districts — as built for the 686 m² Lucknow project. Tensile canopy structures →
Government & civic canopies
Assembly-area cover, queue shelters and event canopies for government and municipal projects. Custom fabric structures →
University & medical-campus structures
Covered walkways, waiting-area canopies and courtyard roofs for the large campus sector. Walkway tensile structures →
Industrial & warehouse cover
Covered yards and loading canopies for the Chinhat, Amausi and Sarojini Nagar estates. Fabric buildings →

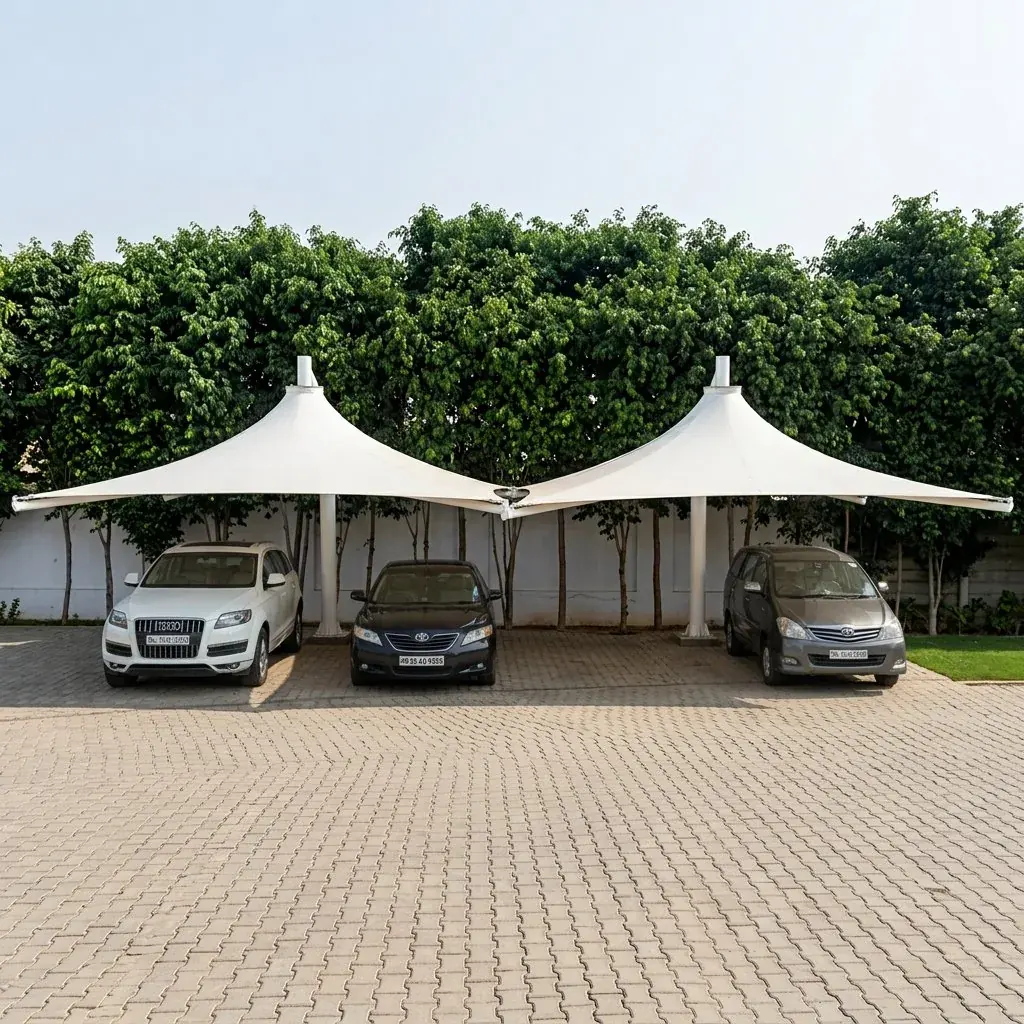

Car parking
Cantilever shades over commercial, government and institutional car parks, with concealed drainage. Car parking tensile shades →
Membrane choice for the local climate
The upper-Gangetic dust and winter smog favour a PVDF finish that largely self-cleans.
PVDF-lacquered PVC
The PVDF top-coat resists dust and UV and largely self-cleans in rain — the sensible default for this climate. PVDF fabric →
PVC-coated polyester
For a short-life, sheltered or budget structure, with more regular cleaning. PVC fabric →
PTFE-coated glass
Chemically inert and near self-cleaning — for a permanent or civic structure, or where a non-combustible fire class applies. PTFE fabric →
Inland and non-coastal — standard hot-dip galvanising is adequate for the steel. Full comparison on the membrane materials page.
Engineering for local conditions
Points that come up on a Lucknow project. No structural values are quoted here.
- Site survey & soil investigation — the firm alluvium is generally good to found on; footings to IS 456, sized against uplift.
- Wind — the plot's exposure is assessed under IS 875 Part 3, including any acceleration around the surrounding multi-storey buildings.
- Drainage — steep positive falls and generously sized gutters and outlets for the monsoon's heavy bursts, with a designed overflow route.
- Atrium roofs — a courtyard roof between existing buildings is fixed back to the frames on each side or carried on new perimeter columns; the interfaces are detailed for weather-tightness, differential movement and access.
- Daylight — a translucent membrane keeps the covered court naturally lit, which is usually the whole reason for choosing fabric over a solid roof.
- Corrosion protection — the steel is hot-dip galvanised; the coating class is set by the local air.
- Thermal movement — the seasonal temperature swing is designed into the connections so the membrane never slackens.
- Off-site fabrication — steel and membrane are cut and made at the workshop and shipped, so the on-site work is assembly and tensioning.
Tensile structure projects in Lucknow
Real Ekra Decor projects completed in Lucknow, each documented with site photographs and recorded scope.
Both documented Ekra Decor projects in the city, plus comparable work:
/1.webp)
Atrium courtyard roof, Lucknow (1,858 m²)
- ProjectAtrium-style tensile roof spanning an open courtyard between multi-storey buildings
- LocationLucknow, Uttar Pradesh
- AreaAbout 1,858 m² (20,000 sq ft)
- ProgrammeCompleted in about two months
- Key featureA single translucent membrane roof that turns an open court into a sheltered, daylit space with no internal columns, fixed back to the surrounding building frames and detailed for weather-tightness and differential movement at each interface
How Ekra Decor covers Lucknow
For Lucknow, Ekra Decor's service area is the city — Gomti Nagar, Hazratganj, the IT city, the Chinhat / Amausi / Sarojini Nagar industrial areas — and the wider central Uttar Pradesh including Kanpur and Barabanki. Steel and membrane are fabricated at the Delhi NCR workshop and shipped; the same in-house team surveys and installs on site.
No local office, factory, warehouse or team. Ekra Decor works across India from a single Delhi NCR design, fabrication and installation base — the same in-house team surveys, engineers, fabricates and installs every project, Lucknow included.
One in-house team, concept to maintenance
Practising since 1998
A dedicated tensile-structure practice, not a general contractor adding a line of work.
60+ documented projects
Across education, healthcare, industrial, transit, retail, hospitality, sport, public and residential work — each with photographs and recorded scope.
In-house, end to end
Site survey, 3D design, structural engineering, steel and membrane fabrication, installation and tensioning — one accountable team, no subcontractor hand-offs.
ISO 9001:2015
Certified manufacturing, with a handover pack of calculations, load report, stability certificate and material certificates on every project.
Engineered to Indian Standards
Wind to IS 875 Part 3, steel to IS 800, foundations to IS 456, galvanising to IS 4759 / IS 2629.
Genuine membranes
Traceable architectural fabric from established manufacturers — Serge Ferrari, Mehler, Heytex — with test certificates supplied.
What drives the cost of a tensile structure in Lucknow
The same factors apply everywhere; the mix changes with the project and the site.
There is no meaningful fixed rate per square foot — two structures of the same area can differ by a wide margin. Distance and site access affect the logistics line, but there is no flat “Lucknow premium”. Send your requirement for a design direction and an itemised quote; the tensile structure cost guide sets out every factor.
Tensile structures in Lucknow FAQ
Questions specific to tensile structure projects in Lucknow.
Yes. Two documented projects in the city — a 1,858 m² atrium courtyard roof and a 686 m² commercial structure — and coverage of the wider central Uttar Pradesh from the Delhi NCR base.
Yes — the two above. One is a large clear-span atrium roof; the other a smaller commercial cover. Both were built by the in-house team from the Delhi base.
No — there is no local office or team. Lucknow is served from the Delhi NCR base via the Agra–Kanpur corridor.
Yes — that is exactly the 1,858 m² Lucknow project. The membrane roof is fixed back to the surrounding building frames or carried on new perimeter columns, with every interface detailed for weather-tightness, differential movement and access.
Daylight and weight. A translucent membrane keeps the covered court naturally lit and puts far less load on the surrounding structure than a solid roof, so it often needs no new internal columns.
PVDF-lacquered PVC is the usual choice — it resists the upper-Gangetic dust and winter smog and largely self-cleans. PTFE-glass for a civic or government landmark; PVC for a budget canopy.
There is no fixed rate per square foot. Cost depends on the area, span, form, steel, membrane and site conditions; an atrium roof tied into existing buildings costs more than a free-standing canopy of the same area. Send your requirement for an itemised quote.
