Tensile Structure in Diu
Tensile pavilions, promenade canopies and tourism structures for Diu — the island union territory off the south Gujarat coast. Engineered for constant salt air, Arabian Sea humidity and cyclone-fringe wind. Ekra Decor has multiple documented projects on the island, including a 2,200 m² conical pavilion, a seafront promenade pavilion and a food-court structure.
- Multiple documented Diu projects
- Full coastal corrosion specification
- Cyclone-fringe wind engineering
- In-house design, fabrication & installation
Engineering Trusted by India’s Leading Names
28+ years delivering tensile structures for corporate campuses, industrial groups, and institutional developments — built with fabric technology from the world’s leading membrane manufacturers.
TATA Motors
L&T
Reliance
Adani
Mahindra
Godrej
DLF
ITC Ltd
Maruti Suzuki
GMR Group
JSW Steel
Prestige Group
Sobha
Siemens
Tata Chemicals
Tata Tele Business Services
Power Grid Corporation
Emaar MGF
National Law University Delhi
UPES Dehradun
Vasant Valley School
Aditya Birla Group
Amity University
Vikram Solar
Tractors India
Mazda Colours
Millennium Structurals
Sehwag International School
BSBK Pvt. Ltd.
17 Miles Hotel
Rich Harvest School
The Imperial New Delhi
Moore Constructions
Mehra Construction
Ramprastha
Minda NexGenTech (UNO Minda)
Yashmay Public School
Gyan Mandir Foundation
Omega Developers
SPEC
Serge Ferrari
Mehler
Heytex
Versaid
Pait
Why a tensile structure in Diu
Diu's demand is almost entirely tourism and public realm: seafront promenades, viewpoints and plazas, food courts and event spaces, resort and hotel amenities, and the structures around its fort and beaches. The island's administration has invested in waterfront development, and tensile pavilions suit that brief — they give shade and shelter with a light footprint and a form that reads well against sea and sky.
Ekra Decor has done more documented work at Diu than in most cities: a 2,200 m² conical pavilion over a circular building with a separate double-peak canopy on the same site; a seafront promenade pavilion; and a food-court tensile structure. All were built to a full marine specification.
Diu is one of the more distant sites from the Delhi NCR base, which affects logistics but not capability — steel and membrane are fabricated at the workshop, shipped, and installed by the same in-house team. For the full technical background, see the tensile structure guide.
How the local climate shapes the design
Diu is a small island — salt air, sea humidity and cyclone-fringe wind define every design decision. This is general climate information for the area; the wind, rain and snow values used in a structural design come from the site survey and the applicable codes, not from a page like this.
Constant coastal salt air
Salt-laden humidity attacks unprotected steel and fittings year round. The frame is hot-dip galvanised and painted or duplex-coated, exposed cables and fittings are stainless, and a PVDF- or PTFE-coated membrane is chosen for salt and UV resistance.
Heavy west-coast monsoon
June to September brings a heavy monsoon — very heavy in Goa and south Gujarat, less so at Diu — often in intense bursts. The roof is given steep falls, oversized gutters and a designed overflow route.
Cyclone-fringe wind exposure
The Arabian Sea coast sees the edge of cyclone-season weather. Wind uplift is taken to the coastal design figure under IS 875 Part 3, not a lighter inland value.
High humidity, moderate heat
The coast does not get the extreme heat of the interior, but humidity is high all year. Enclosed or domed forms are vented so warm, moist air escapes.
Strong marine UV
Reflected sun off water and sand raises the UV load. The membrane is chosen for UV stability and colour hold.
Sandy & variable coastal ground
Coastal soil varies, including loose sand near the shore. Foundations are sized from the site's own soil investigation to IS 456.
Tensile structures that make sense in Diu
Prioritised for the tourism and public-realm demand that dominates the island.
Seafront & promenade pavilions
Shaded viewpoints, rest pavilions and gathering spaces along the waterfront — as built for the Diu promenade. Custom fabric structures →
Conical & feature pavilions
Single- and multi-peak cones over circular buildings, plazas and event spaces — as built for the 2,200 m² Diu pavilion. Conical tensile structures →
Food-court & market cover
Continuous membrane cover over open dining and market areas — as built for the Diu food court. Tensile roofing structures →
Resort & hotel amenities
Poolside canopies, beach shades and event lawns engineered for salt air. Gazebo tensile structures →
Walkways & entrance canopies
Covered links and entrances at public buildings and the fort approach. Walkway tensile structures →
Car & two-wheeler parking
Shade over visitor parking at the beaches and viewpoints, with marine-grade steel. Car parking tensile shades →
Membrane choice for the local climate
On an island, corrosion is the whole conversation — the steel and fittings spec matters as much as the fabric.
PVDF-lacquered PVC
The PVDF top-coat resists salt-laden humidity and UV and stays cleaner in coastal air. PVDF fabric →
PTFE-coated glass
Chemically inert and near self-cleaning — the best-in-class choice for a permanent coastal structure or a fire class. PTFE fabric →
PVC-coated polyester
Only for a short-life or sheltered structure; a plain PVC lacquer chalks faster in salt air. PVC fabric →
On the coast the steel specification matters as much as the fabric: hot-dip galvanising plus paint or duplex coating, and stainless cables and fittings where exposed. Full comparison on the membrane materials page.
Engineering for local conditions
Points that come up on a Diu project. No structural values are quoted here.
- Site survey & soil investigation — coastal soil varies, including loose sand near the shore, so foundations are sized from the site's own soil investigation to IS 456.
- Wind — wind uplift is taken to the coastal, cyclone-fringe design figure under IS 875 Part 3, and the anchorage detailed accordingly.
- Drainage — steep falls, oversized gutters and a designed overflow route for the west-coast monsoon's intense bursts.
- Full marine corrosion package — hot-dip galvanising plus paint or duplex coating on the steel, and stainless steel for every exposed cable, plate, pin and fitting.
- Ventilation — conical and domed forms get a vented crown or raised eave so the sea humidity moves through.
- Corrosion protection — the steel is hot-dip galvanised; the coating class is set by the local air.
- Thermal movement — the seasonal temperature swing is designed into the connections so the membrane never slackens.
- Off-site fabrication — steel and membrane are cut and made at the workshop and shipped, so the on-site work is assembly and tensioning.
Tensile structure projects in Diu
Real Ekra Decor projects completed in Diu, each documented with site photographs and recorded scope.
Documented Ekra Decor projects on the island:
, Diu/swara-pr-patil-diu.webp)
/1.webp)

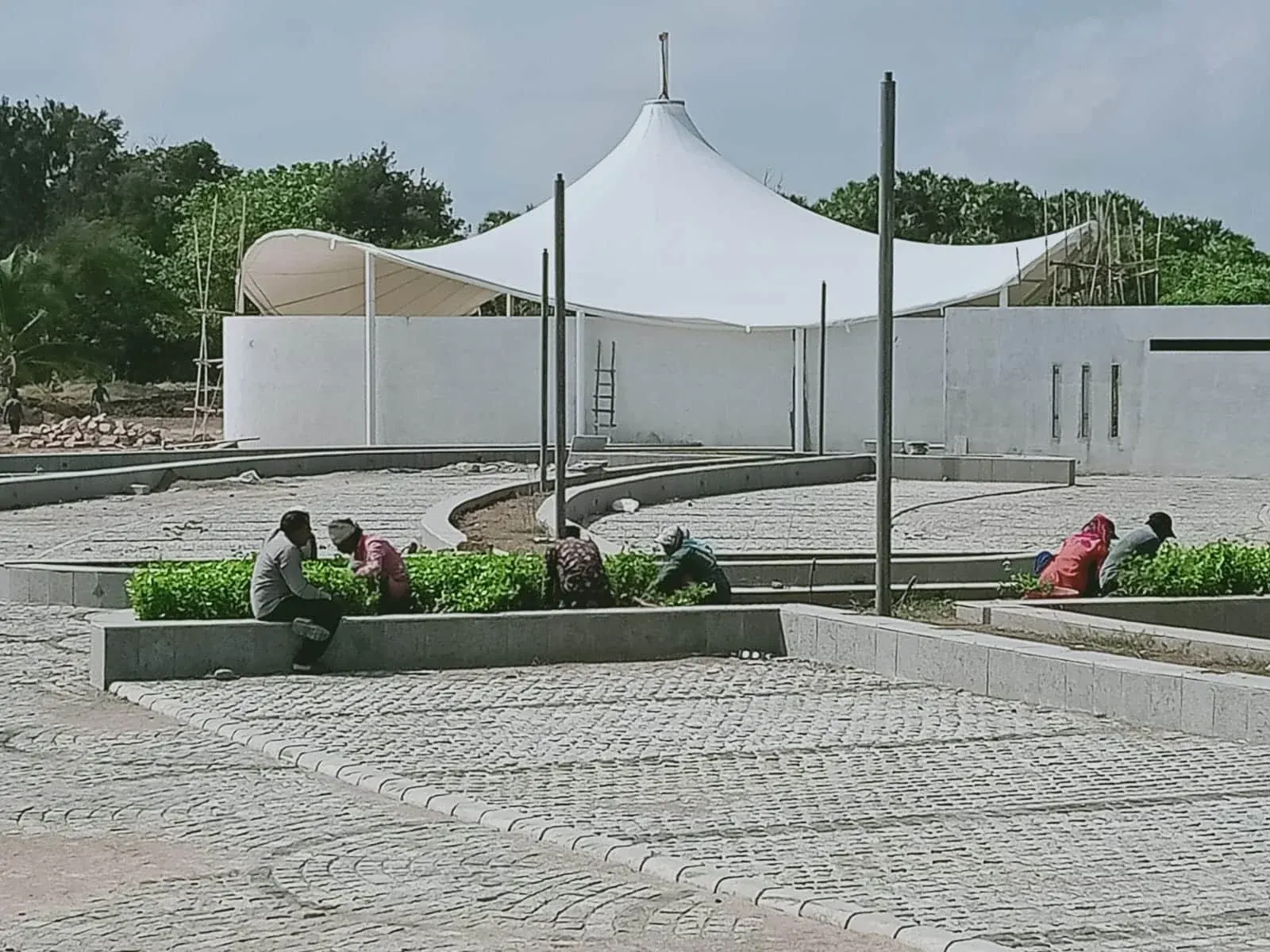

Conical tensile pavilion, Diu (2,200 m²)
- ProjectTensioned fabric cone over a circular building, with a separate double-peak canopy on the same site
- LocationDiu (island union territory, south Gujarat coast)
- AreaAbout 2,200 m²
- ProgrammeCompleted in about 40 days
- Key featureA high central cone that drains outward clear of the building below and vents sea humidity at the crown, on a fully marine-specified frame — galvanised and coated steel, stainless fittings throughout — engineered for cyclone-fringe wind
How Ekra Decor covers Diu
For Diu, Ekra Decor's service area is the island and the adjacent south Gujarat coast around Una and Kodinar. Everything ships from the Delhi NCR workshop, cut and match-marked so the on-site work is assembly and tensioning by the same in-house team.
No local office, factory, warehouse or team. Ekra Decor works across India from a single Delhi NCR design, fabrication and installation base — the same in-house team surveys, engineers, fabricates and installs every project, Diu included.
One in-house team, concept to maintenance
Practising since 1998
A dedicated tensile-structure practice, not a general contractor adding a line of work.
60+ documented projects
Across education, healthcare, industrial, transit, retail, hospitality, sport, public and residential work — each with photographs and recorded scope.
In-house, end to end
Site survey, 3D design, structural engineering, steel and membrane fabrication, installation and tensioning — one accountable team, no subcontractor hand-offs.
ISO 9001:2015
Certified manufacturing, with a handover pack of calculations, load report, stability certificate and material certificates on every project.
Engineered to Indian Standards
Wind to IS 875 Part 3, steel to IS 800, foundations to IS 456, galvanising to IS 4759 / IS 2629.
Genuine membranes
Traceable architectural fabric from established manufacturers — Serge Ferrari, Mehler, Heytex — with test certificates supplied.
What drives the cost of a tensile structure in Diu
The same factors apply everywhere; the mix changes with the project and the site.
There is no meaningful fixed rate per square foot — two structures of the same area can differ by a wide margin. Distance and site access affect the logistics line, but there is no flat “Diu premium”. Send your requirement for a design direction and an itemised quote; the tensile structure cost guide sets out every factor.
Tensile structures in Diu FAQ
Questions specific to tensile structure projects on Diu island.
Yes — more than in most places. Documented Diu projects include a 2,200 m² conical pavilion, a seafront promenade pavilion and a food-court structure, all built to a full marine specification. Everything is fabricated at the Delhi NCR workshop and shipped; the same in-house team installs.
Yes — several, listed above. They are separate structures at distinct locations on the island.
No — there is no local office, factory or team. Ekra Decor works across India from a single Delhi NCR base; the island projects were delivered from there.
With a full marine package: the steel is hot-dip galvanised and painted or duplex-coated, and every exposed cable, plate, pin and fitting is stainless steel. The membrane is a PVDF- or PTFE-coated fabric chosen for salt and UV resistance. On an island this is not optional.
Yes — the wind uplift is taken to the coastal, cyclone-fringe design figure under IS 875 Part 3, and the anchorage and foundations detailed to match, rather than to a lighter inland value.
PVDF-lacquered PVC as the usual choice; PTFE-coated glass for a permanent landmark pavilion or a fire class. The steel and fittings specification matters as much as the fabric here.
There is no fixed rate per square foot. Cost depends on the area, span, form, steel, membrane and site conditions; the marine specification and the distance from the Delhi NCR base both affect the total. Send your requirement for an itemised quote.
Planning a tensile structure in Diu?
Send the site and the brief — you get a design direction, a full marine corrosion and wind specification, and an itemised quote from the team behind the island's pavilions.
