Completed Project — Commercial & Institutional
Dhoot Infrastructure, Gurgaon Tensile Structure
A small tensile structure for Dhoot Infrastructure in Gurgaon — about 37 m² of tensioned fabric on a compact galvanised steel frame, the smallest and fastest project in Ekra Decor’s archive, built in 10 days.
- LocationGurgaon
- StructureTensile Structure
- Coverage≈37 m²
- Delivered≈10 days
Project Overview
from Ekra Decor’s
project records
Ekra Decor built a small tensile structure for Dhoot Infrastructure in Gurgaon. Dhoot Infrastructure Projects Limited is the real-estate arm of the Dhoot Group, a diversified conglomerate founded in 1971, with a documented Gurgaon property portfolio spanning apartments, farm estates, hotels, malls and IT parks.
At about 37 m² and a 10-day build, this is the smallest entry in Ekra Decor’s records — a single feature element. At that scale a tensile structure is typically an entrance canopy, a sheltered kiosk or security point, a small seating or waiting cover, or a signage or display feature.
Which Dhoot property the structure is on is not clear from the archive, and the specific use is not recorded, so this page describes what a feature-scale tensile element is and how it is built.
Project Highlights
Project highlights
The smallest project on record
About 37 m² — a single feature element rather than a canopy over an area.
The fastest documented build
Installed in 10 days from survey to handover.
A feature element
Entrance canopy, kiosk cover, waiting shelter or display feature scale.
Real-estate developer client
Built for the Dhoot Group’s Gurgaon real-estate arm.
Single-point foundations
Minimal groundworks for a structure this size.
Property and use unconfirmed
The archive does not state which Dhoot property or exactly what the structure covers.

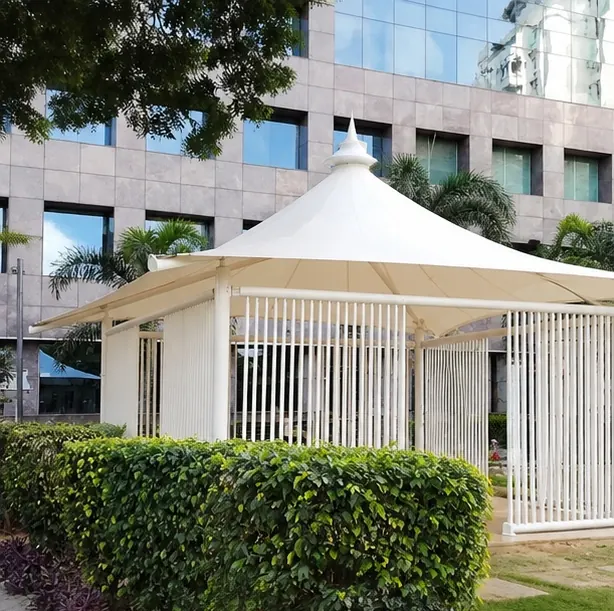

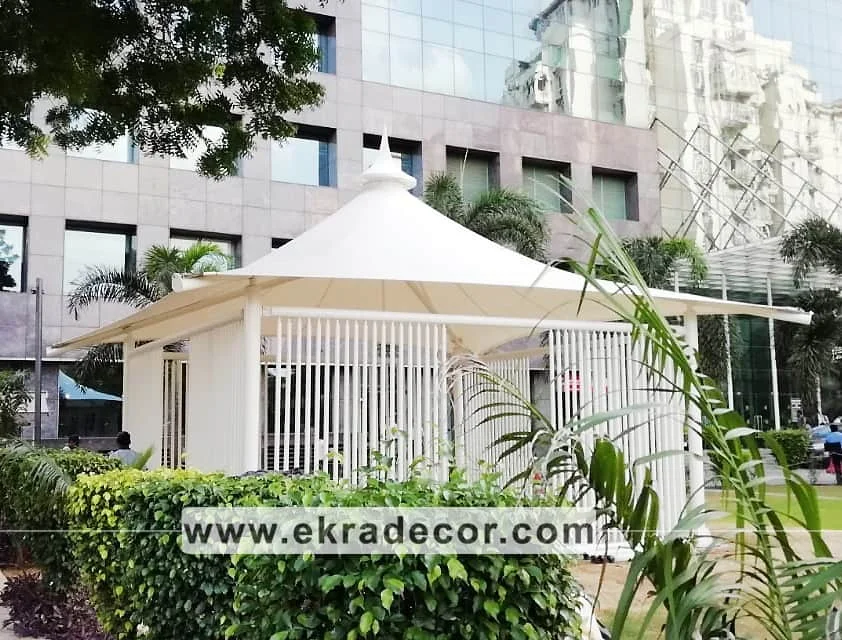

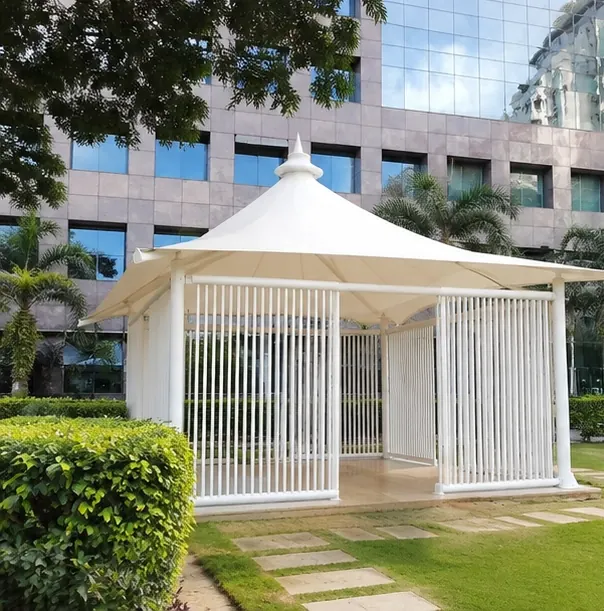

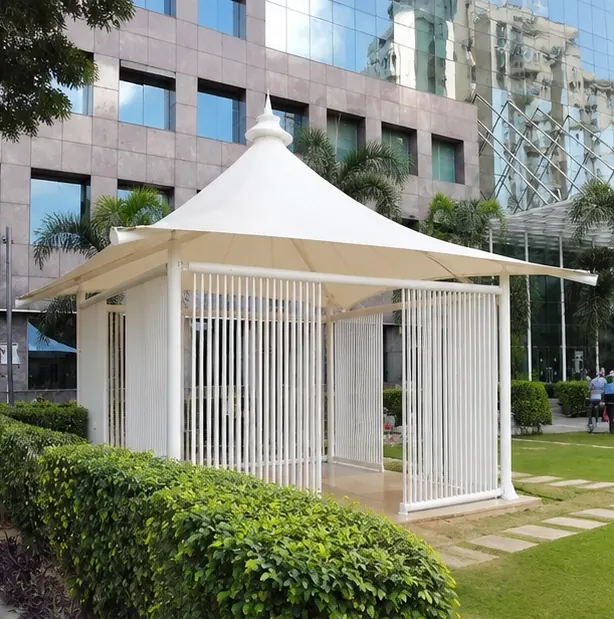

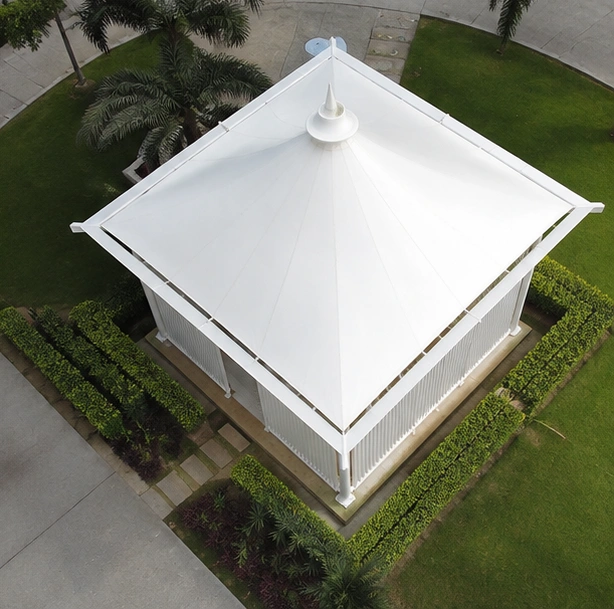

Project Photographs
The project, as built
The Brief
A single feature element
At the small end, a tensile structure is a piece of architecture rather than a shelter over an area — a canopy that marks an entrance, a cover over a kiosk or a security cabin, a small shaded spot. The brief is precise: cover one thing, look considered doing it, and go up fast.
Ekra Decor delivered it as a complete job: survey, 3D design of the form and its frame, fabrication, and installation and tensioning, in 10 days. The archive does not record the exact use, so this page does not over-specify.
Design & Engineering
Engineering a feature-scale canopy
A small canopy is still form-found and pre-stressed. The membrane is pulled into double curvature so it stays taut and reads as a crisp, deliberate shape, carried on a slim galvanised steel frame — often a single mast or a pair of columns on pad foundations.
The loads are modest but real: wind uplift governs, and Ekra Decor designs the steel to IS 800 and checks the structure for wind to the applicable Indian codes, sizing the foundation for uplift and overturning. A coated architectural fabric gives the piece a clean, colour-stable finish that lasts for years.
Fabrication & Installation
Prefabricated, up in days
The frame is welded and hot-dip galvanised and the membrane is cut and edge-finished in the workshop, so the element arrives essentially complete. On site the crew casts the small foundation, stands and plumbs the frame, and spreads and tensions the membrane.
With almost no groundworks and a prefabricated frame, the installation took just 10 days.
The Result
A small, precise piece of shade
The site gained a compact tensile element that shelters or marks one specific spot — done quickly and cleanly. It is effectively maintenance-free apart from an occasional wash and a tension check.
Ekra Decor builds feature and entrance canopies of every size, from a single element upward. See more finished work on the projects page, or read about tensile structures in Gurgaon.
Technical Specifications
Project data
Only the fields recorded for this project are shown. Membrane grade and steel sections are specified per project after the site survey.
Project
- Client
- Dhoot Infrastructure Projects Ltd.
- Location
- Gurgaon, Haryana (specific property not stated)
- Category
- Commercial & Institutional
Structure
- Type
- Tensile Structure
- Coverage
- ≈37 m²
- Membrane
- Architectural tensile fabric (PVC / PVDF-coated polyester) — compare membranes
Delivery
- Scope of work
- Site survey · 3D design · fabrication · installation
- Programme
- ≈10 days
- Engineering
- Wind, rain and seismic loads to applicable IS codes; steelwork to IS 800
- Photographs
- 5, Ekra Decor archive
About This Project
A real, completed Ekra Decor project
This project is recorded in Ekra Decor’s own project archive. It is documented with 5 site photographs from Ekra Decor’s own project archive. Ekra Decor designed, fabricated and installed the structure. Ekra Decor is an ISO 9001:2015-certified tensile structure manufacturer, established in 1998, working pan-India from Delhi and Bangalore.
View ISO 9001:2015 certificate- Structure type
- Tensile Structure
- Location
- Gurgaon, Haryana (specific property not stated)
- Coverage
- ≈37 m²
- Completion
- ≈10 days
- Scope
- Design · fabrication · installation
- Manufacturer
- Ekra Decor Pvt. Ltd. — ISO 9001:2015, est. 1998
Common Questions
About this project & building something similar
Where is this project located?
Gurgaon, Haryana (specific property not stated).
How large is the covered area?
≈37 m² (400 sq ft), per Ekra Decor's project records.
How long did this project take to build?
≈10 days from start to finish, per Ekra Decor's project records — in line with the standard 10 to 15 day fabrication and 3 to 7 day on-site installation timeline used across most projects.
Who was this project built for?
Dhoot Infrastructure Projects Ltd.
Are there real photographs of this project?
Yes — 5 photographs from Ekra Decor's own project archive appear in the gallery above, not a stock or illustrative image.
Can Ekra Decor build something similar for my site?
Yes — every project starts with a site survey and a custom 3D design tailored to your space, not a fixed template. Get in touch to discuss a similar structure for your own site.
What membrane material would a structure like this be built in?
The choice depends on span, climate and intended lifespan. PVC-coated polyester is the most cost-effective option, with a 10–15 year service life. PVDF-coated polyester adds a self-cleaning top layer and pushes that to 15–20 years. PTFE-coated fibreglass is a permanent, non-combustible membrane with a life measured in decades, and ETFE film is used where an ultra-light, highly transparent roof is needed.
Is the structure engineered to Indian standards?
Yes. Wind, rain and — where relevant — snow and seismic loads are analysed to the applicable IS codes, and the steelwork is designed to IS 800. The membrane is form-found so its stresses stay balanced in double curvature, and the foundations are sized against uplift and overturning rather than gravity alone — the governing case for a lightweight tensile roof.
What warranty and documentation come with the structure?
Up to a 10-year written warranty on the membrane, plus as-built drawings, original mill certificates for the membrane and steel, a structural stability certificate and an operation & maintenance manual on handover. An annual maintenance contract covering inspection and re-tensioning is optional.
How much maintenance does a tensile structure need?
Very little — a periodic wash to remove surface dirt, and an annual check of cable tension and bolt torque. PVDF and PTFE membranes are largely self-cleaning, so rain keeps them looking new. We can carry this out under an annual maintenance contract if you prefer.
